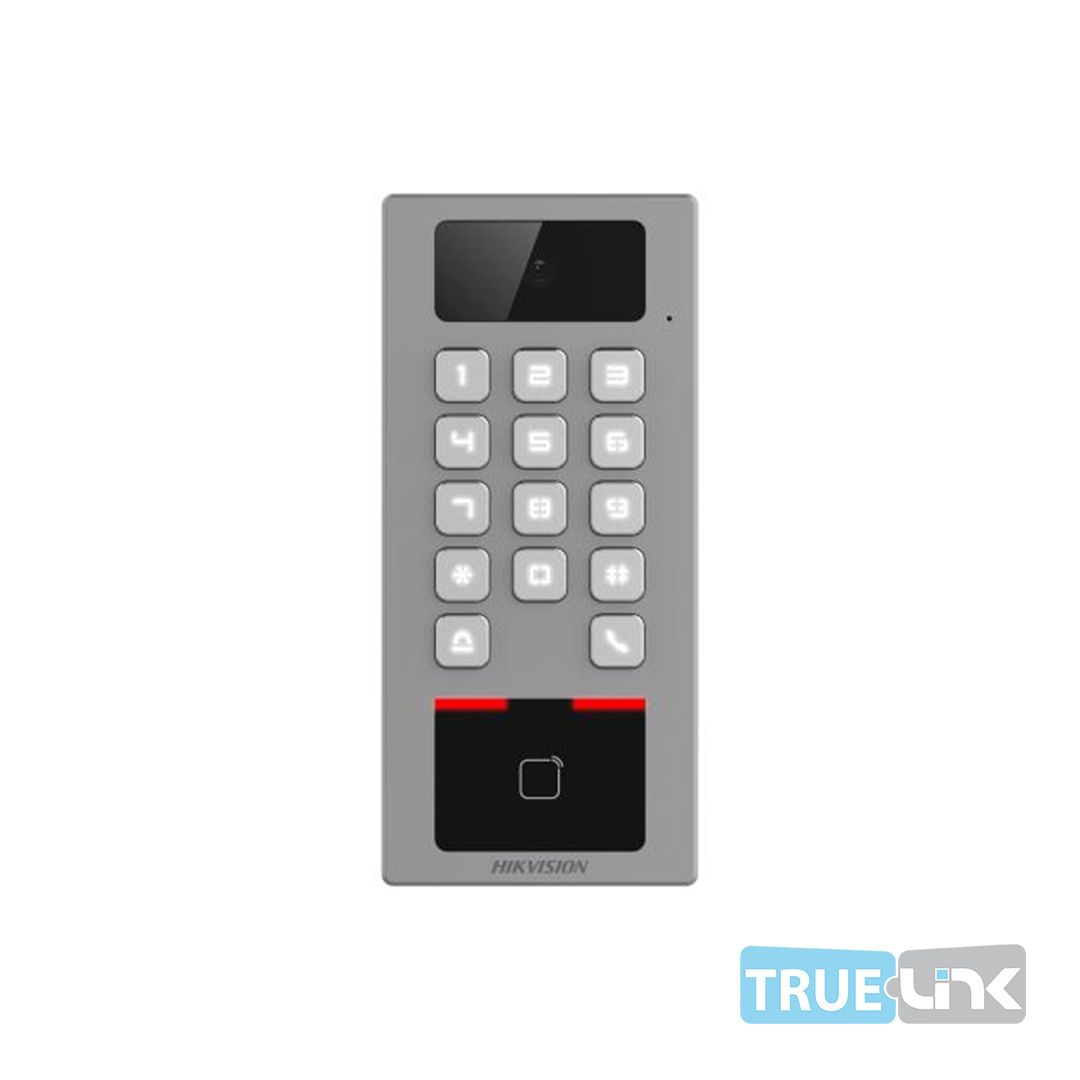

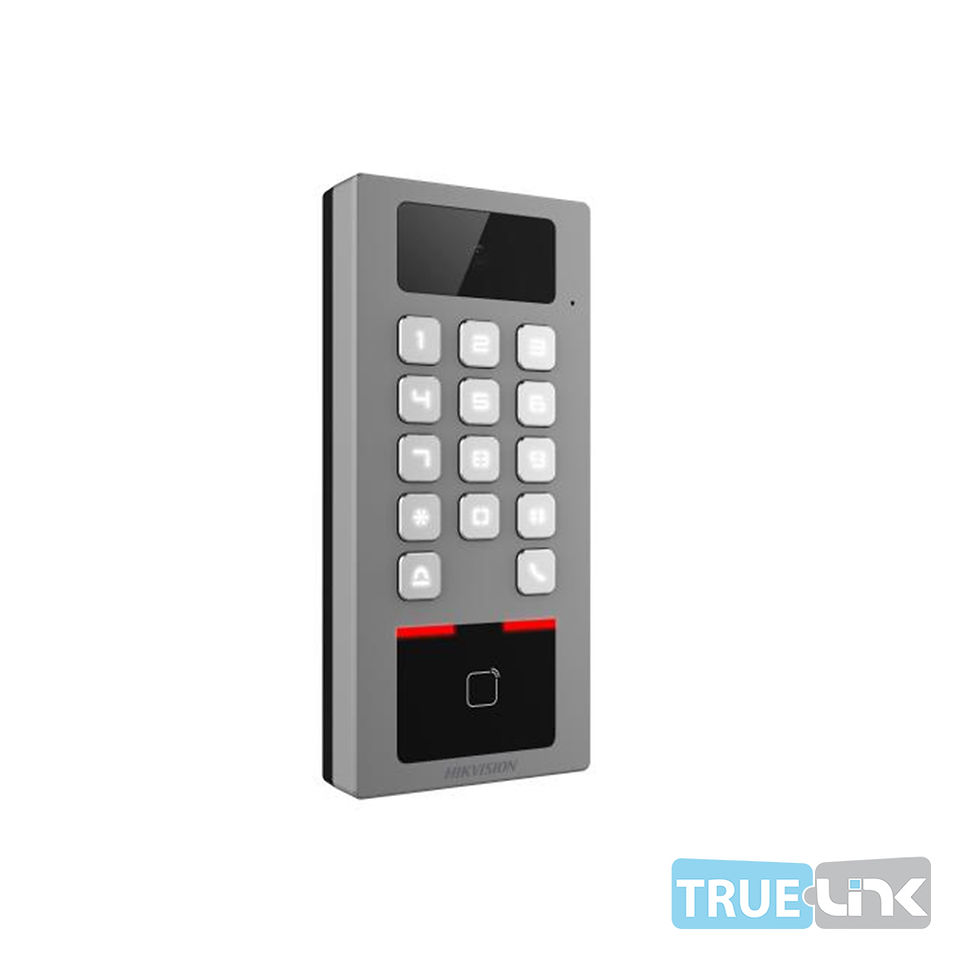

HIKVISION ACCESS CONTROL TERMINAL

Manage access control and intercom functions in one device
IP65 & IK09 protections, as well as increased stability with zinc alloy materials
Supports multiple authentication methods
Remote control via the Hik-Connect mobile app
Connects to external access controller via Wiegand protocol
Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer, and FreePBX
RS-485 communication for connecting external card reader and calling elevator
Supports AP mode
Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
Supports up to 256 GB SD card memory

Available models:- DS-K1T502DBWX-C
Subseries:- Pro Card Terminals
RS-485:- 1
Language:- Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, and Dutch
Uplink Communication:- TCP/IP, WiFi
Card Type:- Desfire Card, M1 Card
Resolution:- 2 MP
FOV:- HFOV = 110°; VFOV = 81°; DFOV = 122°
Lens:- 1
Wired network:- 10 M/100 M self-adaptive
Lock control:- 1
Exit button:- 1
Door contact input:- 1
TAMPER:- 1
Wiegand:- 1 (Input and output)
Card capacity:- 100,000
Event capacity:- 300,000
Card type:- M1 card;DESfire card
Power supply:- 1 A (12 VDC to 24 VDC)
Working temperature:- -40 ℃ ~ +70 ℃ (-40 °F ~ +158 °F)
Protective level:- IK09, IP65
Alarm input:- 1
Power consumption:- ≤12 W
Alarm output:- 1
Wi-Fi:- Support
SD-Card slot:- 1
Video intercom:- Support
Hik-Connect:- Support
Video standard:- PAL (Default) and NTSC
